In precision CNC machining, manufacturing accuracy is not only determined by advanced machining equipment but also by reliable inspection capabilities.

For complex components used in aerospace, UAV, robotics, medical devices, automotive, and industrial applications, dimensional accuracy, geometric tolerance, and surface quality directly affect final assembly performance and product reliability.

At Pincheng Model, we have established a professional quality inspection system equipped with advanced measurement instruments, including Coordinate Measuring Machines (CMM), optical projectors, height gauges, surface roughness testers, and various precision measuring tools.

Through strict inspection procedures from raw material verification to final shipment inspection, we ensure every machined component meets customer requirements and drawing specifications.

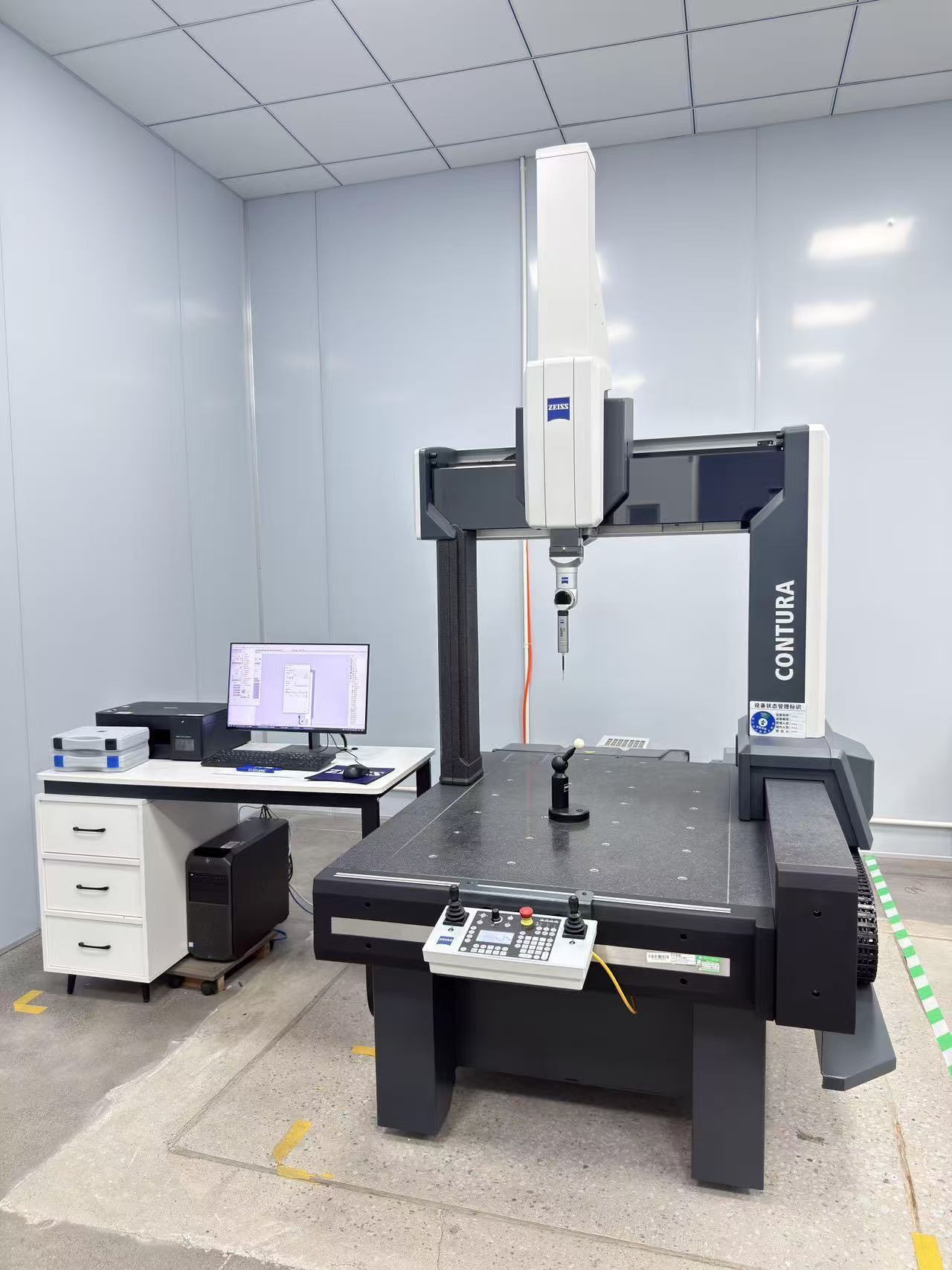

1. Coordinate Measuring Machine (CMM): The Core Equipment for 3D Precision Inspection

A Coordinate Measuring Machine (CMM) is one of the most important inspection devices in precision manufacturing.

Using a high-precision probe system, CMM measures the exact coordinates of points on a component and compares the actual geometry with the original CAD model or engineering drawing.

Main Applications of CMM Inspection:

• Checking complex 3D geometries

• Measuring hole positions and center distances

• Verifying flatness, parallelism, perpendicularity, and profile tolerances

• Inspecting complex 5-axis machined components

• Generating professional inspection reports for customers


For multi-axis CNC machining parts, especially components with complex surfaces, angled holes, and tight tolerances, CMM inspection provides accurate and repeatable measurement results.

CMM inspection is widely used in industries requiring high precision, such as aerospace, medical, robotics, and semiconductor equipment manufacturing.

At Pincheng Model, CMM inspection helps us achieve better process control and provide customers with reliable dimensional verification.

2. Optical Profile Projector: Fast and Accurate 2D Dimension Verification

The optical profile projector, also known as an optical comparator, is widely used for fast dimensional inspection of precision parts.

By enlarging the profile image of a component onto a screen, operators can quickly check the shape, contour, and critical dimensions.

Common Inspection Applications:

• Small precision components

• Thin-wall parts

• Slots and grooves

• Holes and edge profiles

• Complex outlines
  Compared with traditional measurement methods, optical projection inspection allows engineers to quickly identify dimensional deviations and improve inspection efficiency during production.

It is especially useful for prototype machining and small-batch production where fast verification is required.

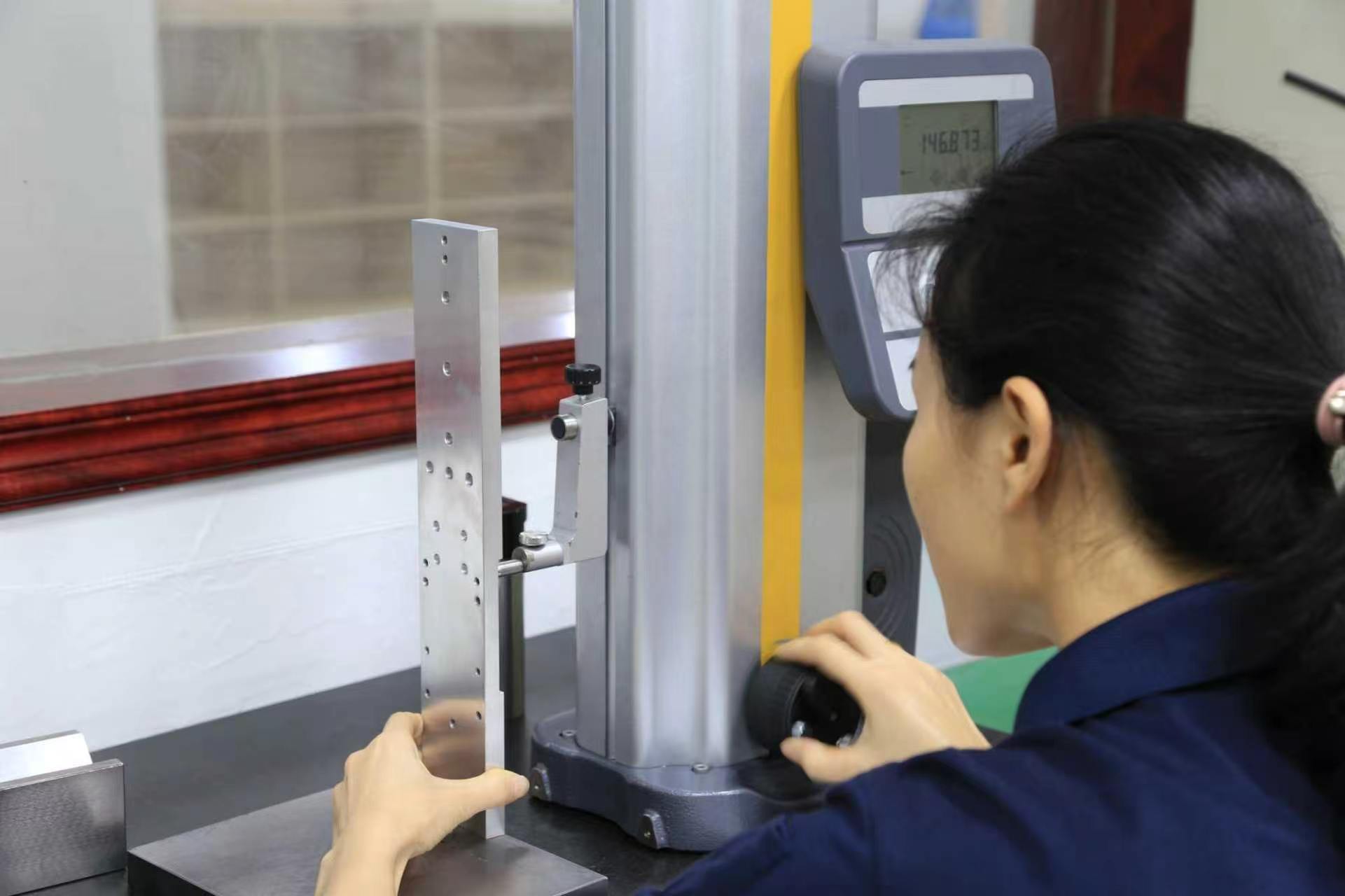

3. Height Gauge: Accurate Measurement of Heights and Step Dimensions

Height gauges are essential tools for daily dimensional inspection in CNC machining workshops.

They are mainly used on granite surface plates to measure vertical dimensions, steps, depths, and part positioning features.

Typical Applications:

• Measuring part heights

• Checking step differences

• Verifying hole locations

• Supporting first-piece inspection

• Performing in-process quality checks


Height gauges provide fast and reliable measurement results, making them ideal for production line inspection and process monitoring.

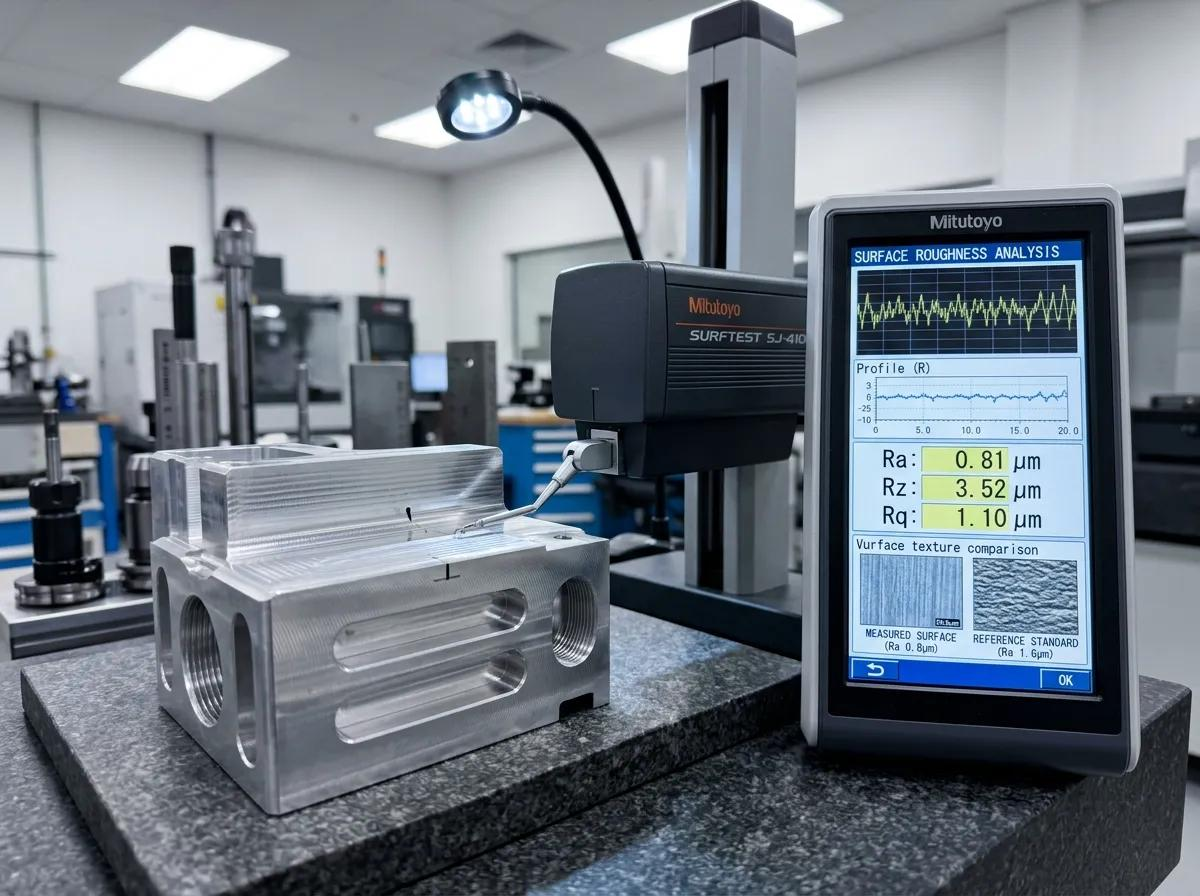

4. Surface Roughness Tester: Controlling Machined Surface Quality

Surface finish plays an important role in component performance, especially for precision assemblies, sealing surfaces, and appearance-critical products.

A surface roughness tester measures parameters such as:

• Ra (Average Roughness)

• Rz (Maximum Height Roughness)

• Surface texture consistency


Applications Include:

• CNC milling surface inspection

• Precision sealing surfaces

• Anodized aluminum parts

• Aerospace and optical components

• Parts requiring specific surface finish requirements
  By verifying surface roughness values, we ensure machined parts meet both functional and visual requirements.

5. Daily Basic Inspection Tools: Ensuring Quality Throughout Production

Besides advanced inspection equipment, professional CNC manufacturing also requires reliable basic measurement tools for daily quality control.

Digital Calipers

Used for quick measurement of:

• Overall dimensions

• External diameters

• Internal dimensions

• Basic thickness checks


Micrometers

Provide higher accuracy measurement for:

• Shafts

• Thickness

• Critical diameters

• Precision machining features


Thread Gauges and Pin Gauges

Used to verify:

• Internal threads

• External threads

• Hole diameters

• Precision fit requirements


Dial Indicators

Used for checking:

• Flatness

• Runout

• Alignment

• Machine setup accuracy


These basic inspection tools are used throughout the machining process to identify potential issues early and maintain stable production quality.

6. Our Quality Inspection Process

At Pincheng Model, quality control is integrated into every manufacturing stage.

Incoming Material Inspection

We verify:

• Material specifications

• Supplier certificates

• Material consistency


In-Process Inspection

During machining, our engineers monitor:

• Critical dimensions

• Machining stability

• Tool wear impact

• Process consistency


Final Inspection

Before shipment, parts are inspected according to customer requirements, including:

• Dimensional inspection

• Surface finish verification

• Appearance checking

• Inspection report preparation


This systematic approach helps reduce manufacturing risks and ensures every component meets customer expectations.

Precision Measurement Builds Manufacturing Confidence

Advanced CNC machining requires more than high-performance machines. Reliable inspection equipment and experienced quality engineers are equally important.

With professional measurement systems including CMM, optical inspection equipment, height gauges, surface roughness testers, and precision measuring tools, Pincheng Model provides customers with consistent quality, accurate dimensions, and dependable CNC machining solutions.

Whether you need prototypes, low-volume production, or complex 5-axis machined components, our team is ready to support your project from design verification to final delivery.

Contact Pincheng Model today to discuss your next precision machining project.
